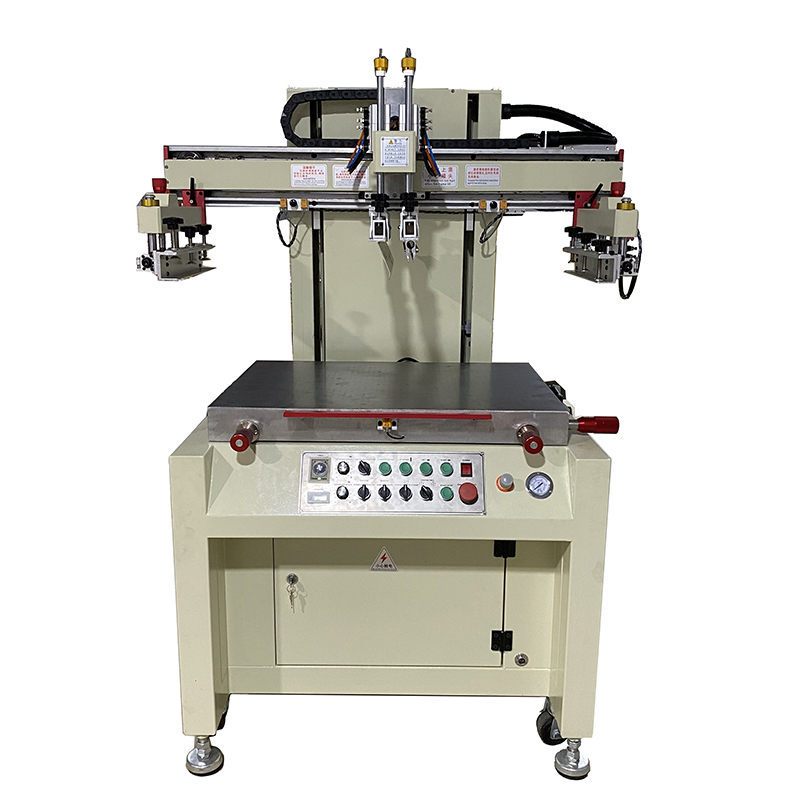

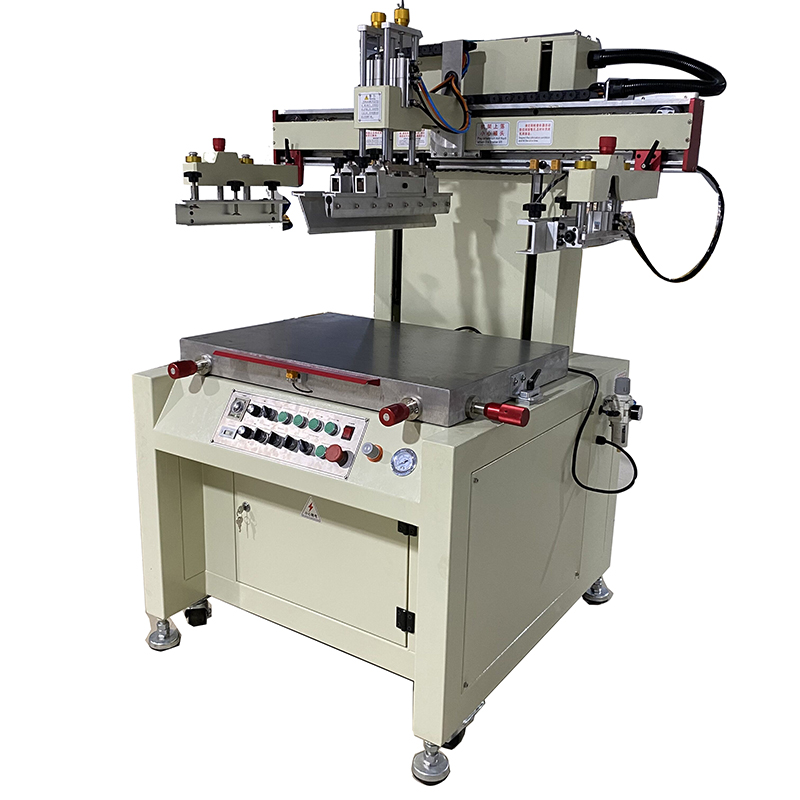

The 6080 electric high-precision and high-efficiency flat screen printing machine is controlled by a frequency conversion motor with fast response speed and accurate starting and stopping positions. The movement of the print head scraper is controlled by an air cylinder, which makes the printing pressure more flexible. Stable printing balance, low vibration, high precision, accurate multi-color overprinting. Printing accuracy: ±0.02mm, running speed can reach 1200 times per hour. This machine can be set to manual | semi-automatic | full-automatic three modes, the indirect time of printing action can be digitally controlled. Independently designed printing head lifting device makes it easy to squeegee/return the oil knife, screen loading and unloading and screen cleaning. The complete package of the whole machine makes it safer and maintenance-free. It is safe and beautiful, easy to operate and convenient to take, which greatly improves the production efficiency. It is suitable for printing PCB boards, silica gel, textiles, plastic buttons, PET, cardboard, nameplates, trademarks, IC boards, membrane switch circuits, mobile phone lenses, glass, LCD panels and signs and other flat materials.
Machine performance:
1. The touch screen man-machine interface cooperates with the programmable controller, which is durable, simple to maintain and powerful;
2. The man-machine dialogue touch screen operation mode is convenient and fast (the printing action is designed with multiple printing cycles, and the user can choose freely according to the printing process);
3. Guide rail sliding structure, high precision and stable operation;
4. Squeegee constant pressure device to ensure stable pressure during printing;
5. The angle of the scraper/returning ink knife can be adjusted arbitrarily;
6. High-precision fine-tuning workbench with self-locking device, the adjustment accuracy can reach 0.01mm;
7. The position of the screen frame can be adjusted front and rear, left and right, and horizontally;
8. The printing head can be raised upright, which is convenient for picking and placing or cleaning the screen;
9. Frequency conversion control makes printing smoother;
10. Precision grinding high-strength hardness workbench, equipped with vacuum suction, to ensure accurate multi-color registration;
11. The work surface is equipped with an emergency stop device to prevent pinch injury.
Machine parameters:
Up and down drive mode: electric
Left and right drive mode: electric
Left and right stroke: 800mm
Up and down stroke: 125mm
Table area: 600*800mm
Maximum screen frame size: 750*1000mm
Maximum printing area: 500*700mm
Maximum height of workpiece: 120mm
Printing speed: 800—1000pcs/hr
Power requirements: 220V 50-60MHZ/950W
Air pressure: 5-7BAR
Body size: 1100*1300*1650mm
Weight: 340kg
