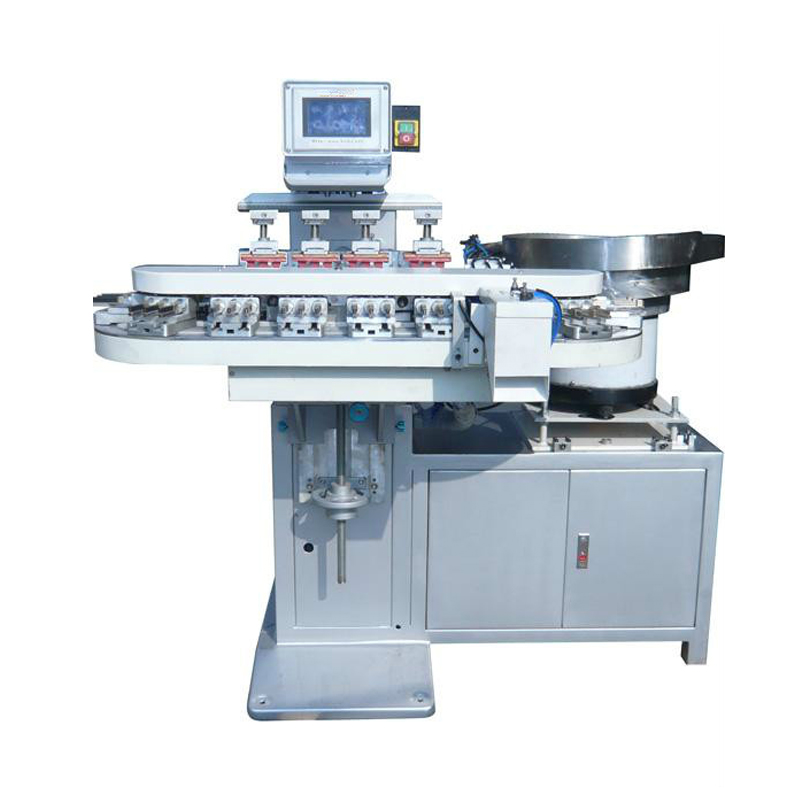

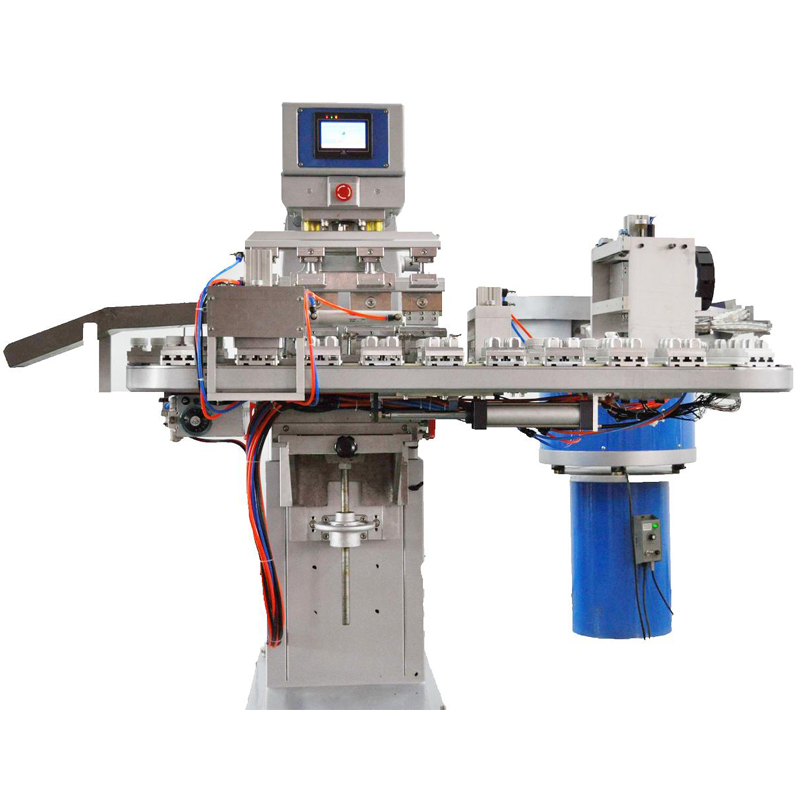

Size clip special four-color turntable transfer printing machine, this printing machine is a four-color turntable transfer printing machine, which can print products of four colors at one time, and the turntable type can print eight products at a time so that the production capacity can reach 8000,000,12,000 products per hour. The use of vibrating disc automatic feeding and pneumatic automatic feeding device, for automatic turntable printing machine, intelligent automatic rotary printing three sides, can complete monochromatic four-sided printing at one time. Fully cast aluminum fuselage, vertical structure, easy to install and easy to operate, size clip special automatic printing machine, also suitable for four-color printing of electronic products, plastic shells, hardware, stationery, small handicrafts and gifts.

1. Automatic computer control, flexible and reliable operating procedures.

2.Automatic loading and unloading device + automatic rotation printing on three sides.

3. The machine head can be adjusted and raised to facilitate the replacement of ink, plastic head, steel plate and parts.

4. The ink tray and the printing head can be changed at will to multi-color printing, breaking through the general mechanical performance and adding more flexibility.

5. Each oil pan seat X, Y, angle is adjusted independently, the color registration is accurate, and the production efficiency is improved.

6.The machine body adopts aluminum alloy die-casting frame, which is both light and strong.

7. The comprehensive use of precision pneumatic components and the accessories processed by computer numerical control machine tools is a guarantee of confidence.

8. Select the hardened shaft and bearings of famous factories to ensure that the maintenance is not easy to wear and greatly extend the life of the parts.

9.The automatic scraper system can use nylon or steel plate, which is easy to adjust, accurate to color, and improves production efficiency and quality.

10. Equipped with safety rubber sheet and power emergency cut-off system, in line with international industrial safety standards.

Maximum steel plate area: 100*150mm

Maximum printing area: 70*120mm

Printing speed: 5000pcs/hr

Power: 220V 50-60HZ 0.3KW

Air pressure: 5-7bar

Machine size: 1600*1000*1450mm

Weight: 280kg
