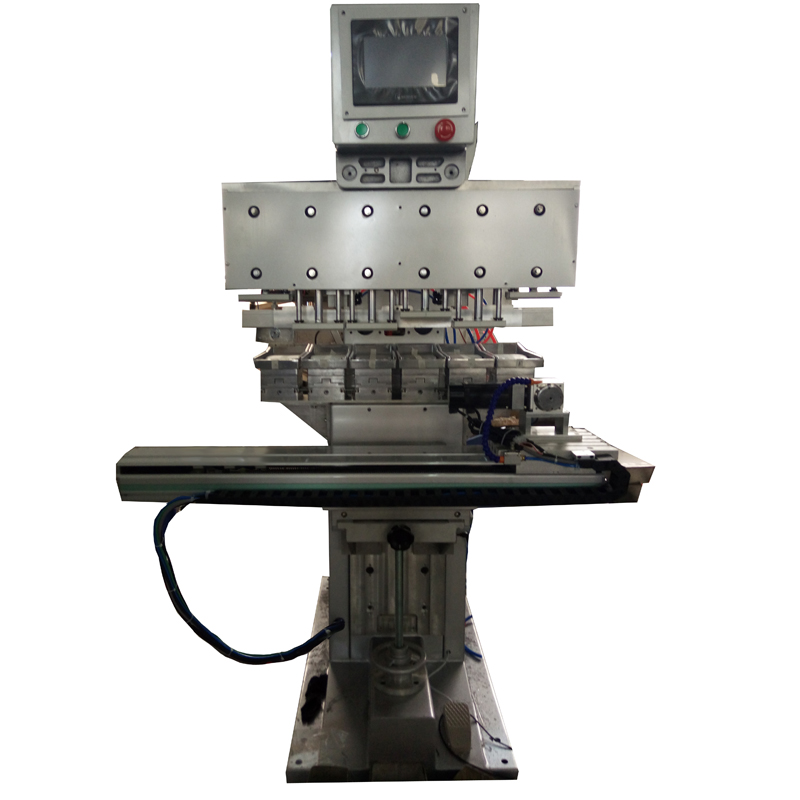

This shuttle pad printing machine is suitable for plastics, toys, electrical appliances, gifts and daily necessities industries. It is especially suitable for printing on small planes, convex and concave surfaces.

1. The touch screen controls the action of each function, the man-machine interface, the operation is simple and convenient.

2. Six-color shuttle pad printer, the worktable adopts servo motor with precision ball screw drive, which can realize printing at any position within the left and right stroke range.

3. The machine structure is made of high-quality aluminum alloy, which is light and firm, and the base is made of steel plate, which is firm and stable.

4. The ink is filled with an oil cup, the ink concentration is stable, no solvent is added within 6-8 hours, the ink is not easy to volatilize, splash, save ink by more than 50%, and the operating environment is clean and comfortable.

5. The oil cup is easy to disassemble and assemble and durable.

6. The dwell time of each position is adjustable to meet different printing requirements.

7. It is possible to dip ink twice and transfer printing once to obtain a thicker printing pattern ink layer.

8. The unique cup-shaped blade structure makes oil scraping clean and neat, and the pad printing products are clear and beautiful.

9. With automatic air blowing and air drying function.

10. The six-color independent adjustable oil pan seat makes the color adjustment easy and accurate.

Travel distance: 114.3mm

Oil cup diameter: Φ90mm

Steel plate size: 100*250mm

The fastest printing speed: 800pcs/hr

Free air consumption: 300L/min

Rated power: 1000W

Rated voltage: 1ΦAC 220V±10% 50Hz-60Hz

Rated current: 5A

Noise value: <80dB

Machine dimensions: 1150×1000×1700mm

Machine weight: 240kg
