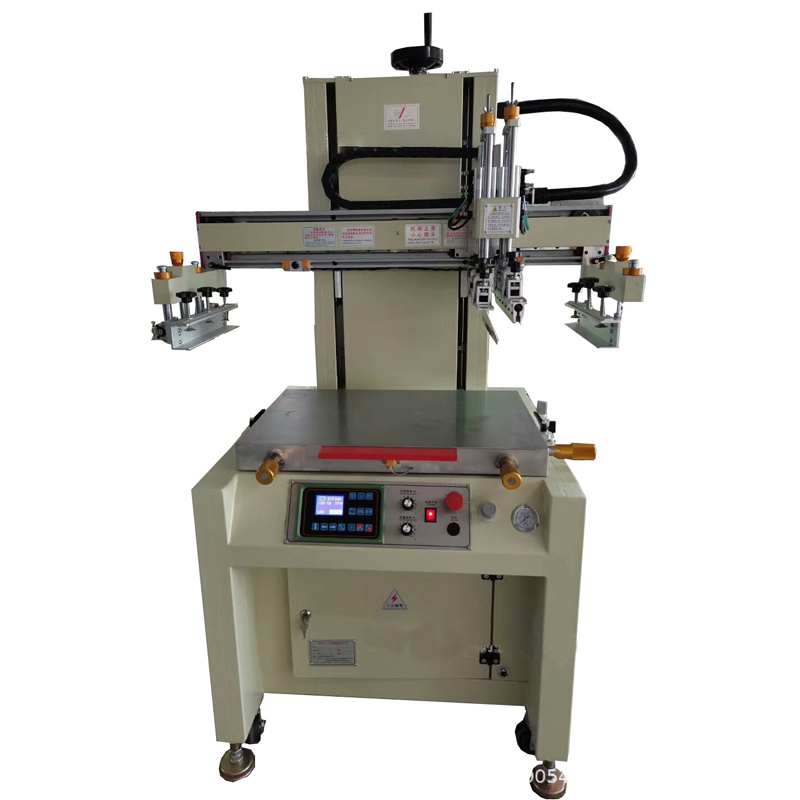

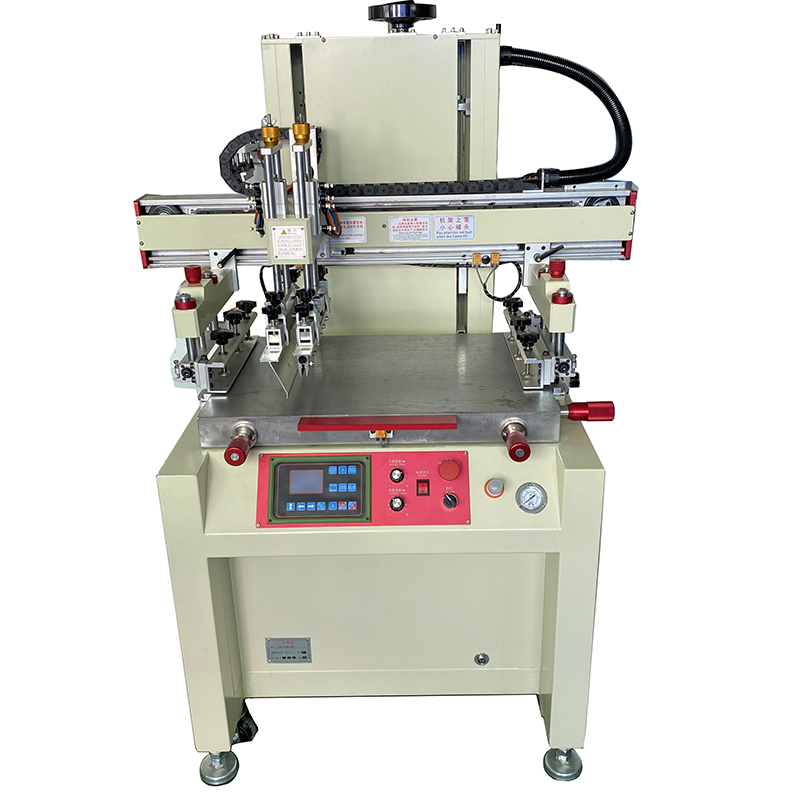

5070 plane screen printing machine is a precision and high efficiency plane screen printing machine, which adopts imported pneumatic components, upper silver guide and variable frequency speed regulation motor control up and down, small printing balance vibration, high precision, stable operation and accurate multi-color overprinting. Printing accuracy: +-0.02MM, running speed up to 1200 times per hour, suitable for precision printing of products such as mobile phone lenses, mobile phone glass, liquid crystal display, mobile phone keys, mobile phone shell, circuit board, paper, PVC film, plastic film, textiles, keyboards, etc.

1. Use PLC to compile the action program.

2. Automatic four-digit counter to count the printing quantity.

3. Fully cast aluminum body with powder-coated and baking paint on the surface.

4. Double-column lifting structure, stable and high precision.

5. Adjustable left and right stroke, Taiwan photoelectric switch limit.

6. The angle of squeegee/returning ink knife can be adjusted arbitrarily.

7. The squeegee constant pressure device ensures the stable pressure during the printing process.

8. The rotation angle of the worktable is fine-tuned and locked.

9. The position of the screen frame can be adjusted front and rear, left and right, horizontal, height.

10. The stainless steel suction table panel is durable.

11. Equipped with hydraulic buffers up and down to eliminate printing vibration.

12. The whole machine runs fast, stable and low noise.

• Left and right stroke: 700mm

• Up and down stroke: 125mm

• Table area: 500*700mm

• Maximum screen frame size: 600*900mm

• Maximum printing area: 450*650mm

• Maximum height of workpiece: 120mm

• Printing speed: 800—1000pcs/hr

• Power requirements: 220V 50-60MHZ/950W

• Air pressure: 5-7BAR

• Body size: 900*1200*1700mm

• Weight: 320kg
