Suitable for printing PCB, silica gel, textile, plastic keys, PET, cardboard, nameboard, trademark, IC board, film switch circuit, mobile phone lens, glass, liquid crystal display board, signage, PVC sheet, flower paper and other planar materials. Can be widely used in daily necessities, toys, electronics, electrical appliances, plastic, leather, metal, glass, light industry and food packaging and other industries.

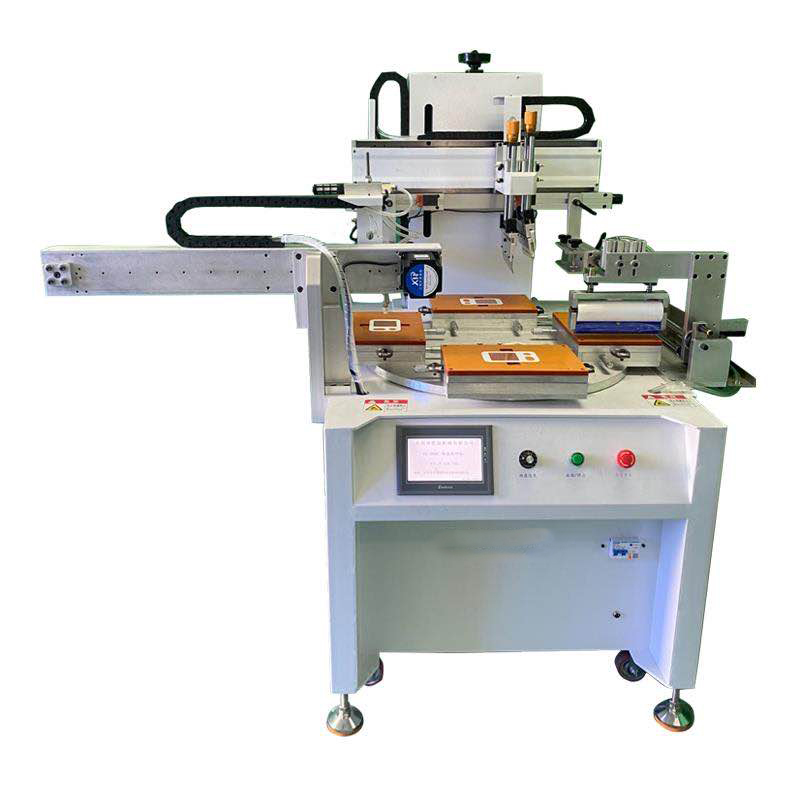

1. The splitter imported from Taiwan works with the variable speed brake motor;

2. Japan (Mitsubishi) programmable controller controls the action of the whole machine;

3. Touch-type man-machine interface operation screen is more convenient and flexible;

4. Automatic counter function to count the printing quantity;

5. Action mode selection automatic, single-deck, manual debugging;

6. The high-strength cast aluminum rotating disk ensures the accuracy of the flatness of each station;

7. Using Taiwan silk linear guide for sliding left and right;

8. The left and right printing strokes are adjustable, and the sensitive photoelectric switch limit;

9. The knife angle can be adjusted arbitrarily;

10. There is no gap between the front and rear, left and right, the rotation angle of the worktable is fine-tune and locked;

11. The scaled mesh arm can accurately adjust the position of the screen frame;

12. Arbitrary installation of T type or suction workbench;

13. Equipped with Taiwan CEC hydraulic buffers up and down to eliminate printing vibration;

14. The whole machine runs fast, stable and low noise;

15. Manual unloading, manipulator unloading,automatic dust removal.

Remarks: This machine can add functions such as automatic loading and unloading manipulator, flat vacuum cleaning, ultraviolet curing, dust removal, static removal, safety fence, protective cover, etc. according to customer needs.

Workbench area: 200*300mm

Maximum printing area: 180*250mm

Maximum height of printed product: 80mm

Maximum screen frame size: 400*600mm

Up and down stroke: 200mm

Left and right stroke: 420mm

Air pressure: 4-6bar

Printing speed: 1200pcs/hr

Machine size: 1500*1200*1550mm

Weight: 450kg
