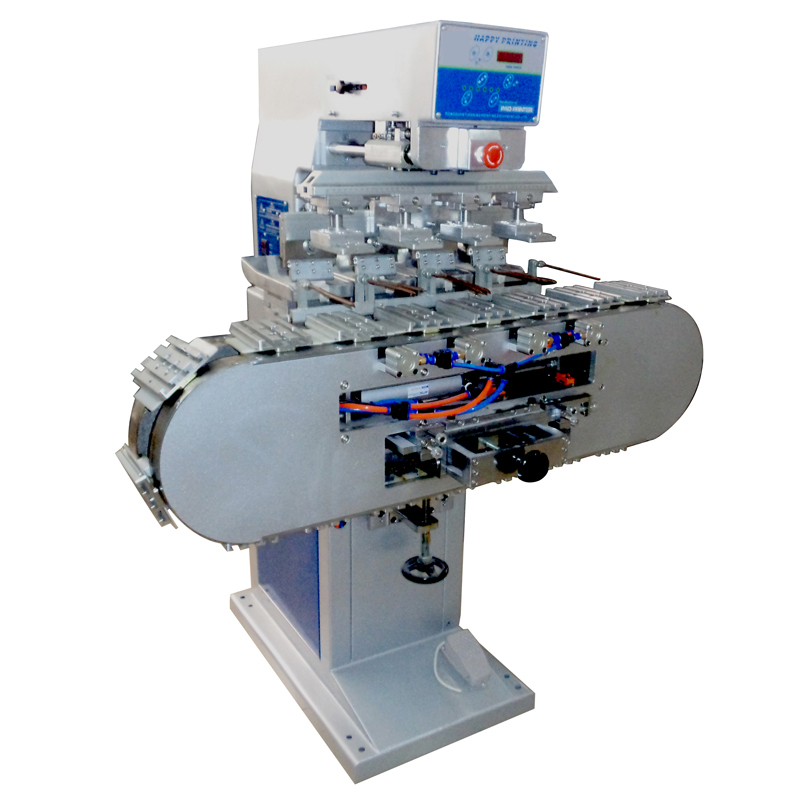

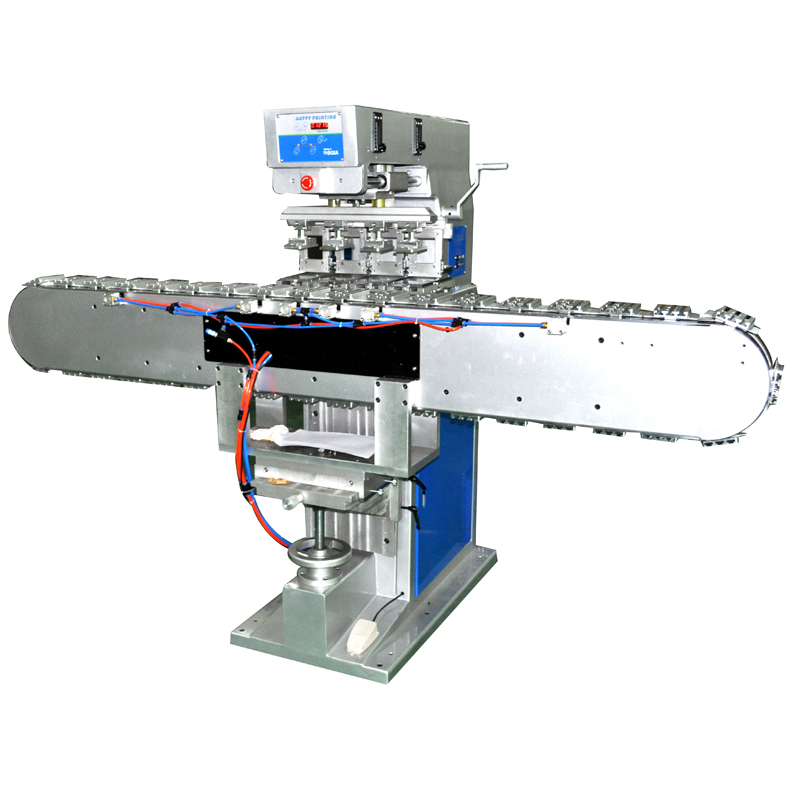

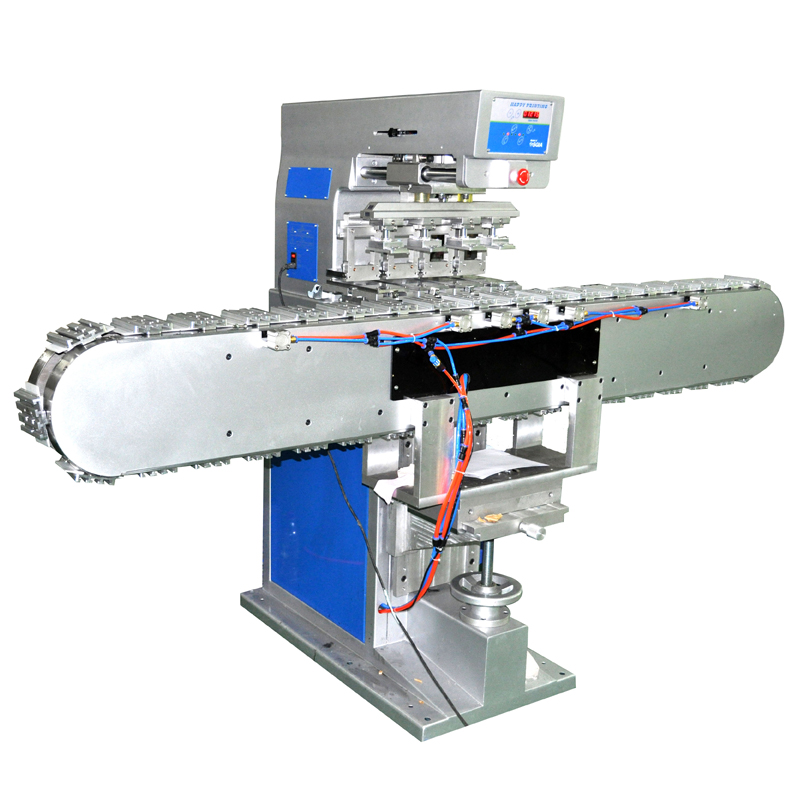

Machine performance:
1. Four-color pad printing machine adopts geared tank conveyor belt workbench.
2. The microcomputer controls the action of each function, and the operation is simple and convenient.
3. Built-in five-digit automatic counter.
4. The machine frame is made of high-quality aluminum alloy, which is light and strong.
5. Sealed oil cup system, the ink is not easy to volatilize, has no peculiar smell, is clean and hygienic.
6. Equipped with a safety protective cover, which meets the safety requirements.
7. It is possible to stick the ink twice and transfer once to obtain a thicker printing oil film.
8. The dwell time of each position is adjustable to meet different printing requirements.
9. You can go back and forth without falling glue to prevent the ink from drying up when you stop.
10. Mechanical automatic feeding without manual feeding.
11. Optional automatic feeding and sorting system to increase production speed, suitable for products with large quantities and the same specifications.
12. Four-color independent adjustable oil pan seat, easy and accurate color adjustment.
13. With special shock absorption device, the machine operates very smoothly.
Machine parameters:
Plate Size:100*250mm
Maximum printing area: 100*200mm
Pcs/hr:1200
Dia of inkcup:60/90mm
Up and down stroke: 175mm
Left and right stroke: 225mm
Air Pressure:5-7bar
Machine Size:1750*1100*1650mm
Net Weight:350kg
Remarks: This machine can be equipped with automatic feeding and automatic cleaning rubber head devices according to customer needs.
