Screen Printing Machine Screen Printing Machine >>

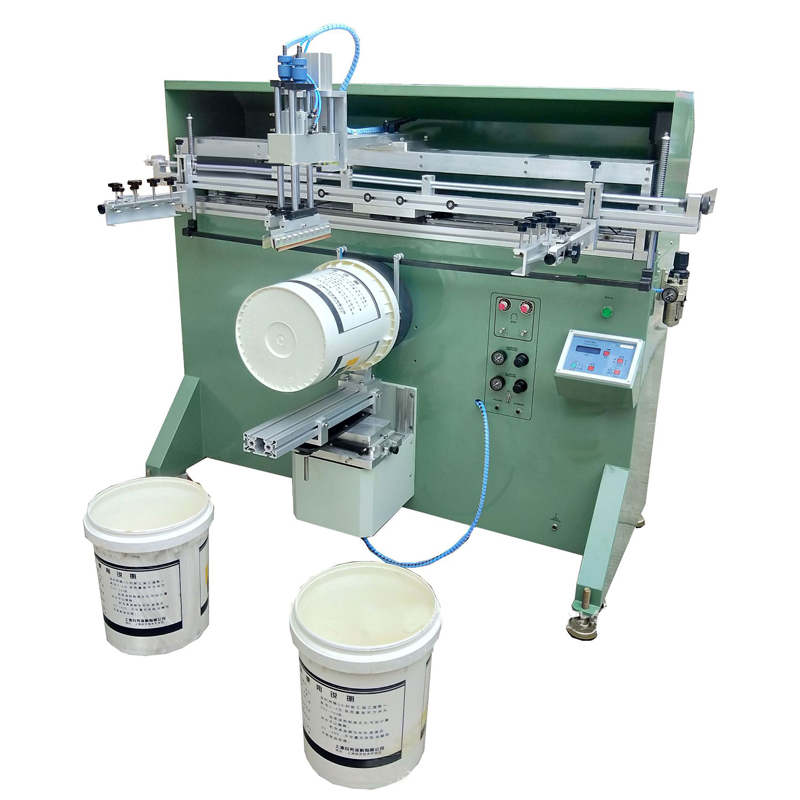

1200 curved screen printing machine, barrel screen printing

Machine performance:
1. The microcomputer controls the action of each function, with a high degree of automation and simple and convenient operation;
2. Built-in four-digit automatic counter;
3. It has printing functions such as round, tapered, and flat surfaces;
4. Printing stroke and speed are adjustable to meet different printing requirements;
5. The worktable can be fine-tuned up and down, left and right, and plane swing angle, with high printing accuracy, convenient and fast adjustment;
6. Pneumatic printing control and pressure adjustment system;
7. Microcomputer system controller with stable and reliable performance;
8. A clear liquid crystal display shows the working status of the machine at any time;
9. High-quality Korean sensors and perfect fault alarm system;
10. Convenient foot switch, simple operation and convenient maintenance;
11. High-quality alloy die-casting parts and wear-resistant imported bearing sleeves;
12. Frequency conversion motor control can make the stop position more accurate;
13. Independent printing and ink return speed control;
14. The air blowing function of the printing seat can print softer products;
15. There are separate special fixtures for round and flat products;
16. Guide rail type sliding left and right printing structure, printing more stable. Higher accuracy;
17. Action mode selection: automatic|semi-automatic|manual.

Machine parameters:
Up and down drive mode: pneumatic
Left and right drive mode: electric
Workpiece up and down stroke: 100MM
Left and right stroke: 1200mm
Maximum printing area: 1150mm (the length on the circumference or arc) * 350mm (width) The diameter range that can be printed: ¢20-¢370mm
Maximum printing length: 1150mm
Printing speed: 800-1000pcs/hr
Power requirements: 220V 50/60HZ 500W
Air pressure requirement: 5-7BAR
Body size: 1250x1200x1550mm
Weight: 220kg
