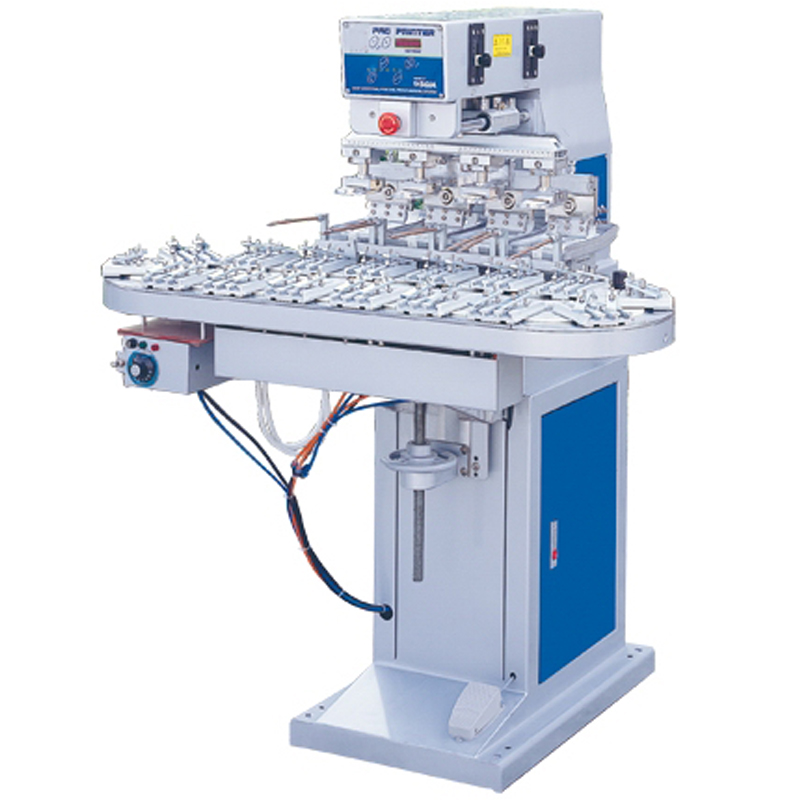

Machine performance:
1. The four-color pad printer adopts a gear-type turntable to convey the worktable.
2. The microcomputer controls the action of each function, and the operation is simple and convenient.
3. Built-in five-digit automatic counter.
4. The machine structure is made of high-quality aluminum alloy, which is light and strong.
5. The oil roller is inked, which is convenient for assembly, disassembly and cleaning.
6. Automatically balanced oil knife, scraping oil cleanly.
7. The dwell time of each position is adjustable to meet different printing requirements.
8. It is possible to stick ink twice and transfer printing once to obtain larger printing ink.
9. You can go back and forth without falling glue to prevent the ink from drying out when you stop for a while.
10. It can print four-color, three-color, two-color, and single color, which can be described as one machine with multiple functions.
11. Each oil pan can be disassembled and assembled independently without removing the left and right neighboring oil pans, which is convenient for cleaning and ink replacement.
12. Each scraper can be adjusted independently to ensure that each steel plate is scraped cleanly.
Machine parameters:
Steel plate size: 100*150mm
Speed: 1200pcs/hr
Oil cup diameter: 60/90mm
Air pressure: 5 bar
Front and back stroke: 160mm
Up and down stroke: 75mm
Center distance of oil pan: 127mm
Body size: 1200*1000*1500mm
Body weight: 240kg
Remarks: Automatic cleaning device can be added according to customer needs.
