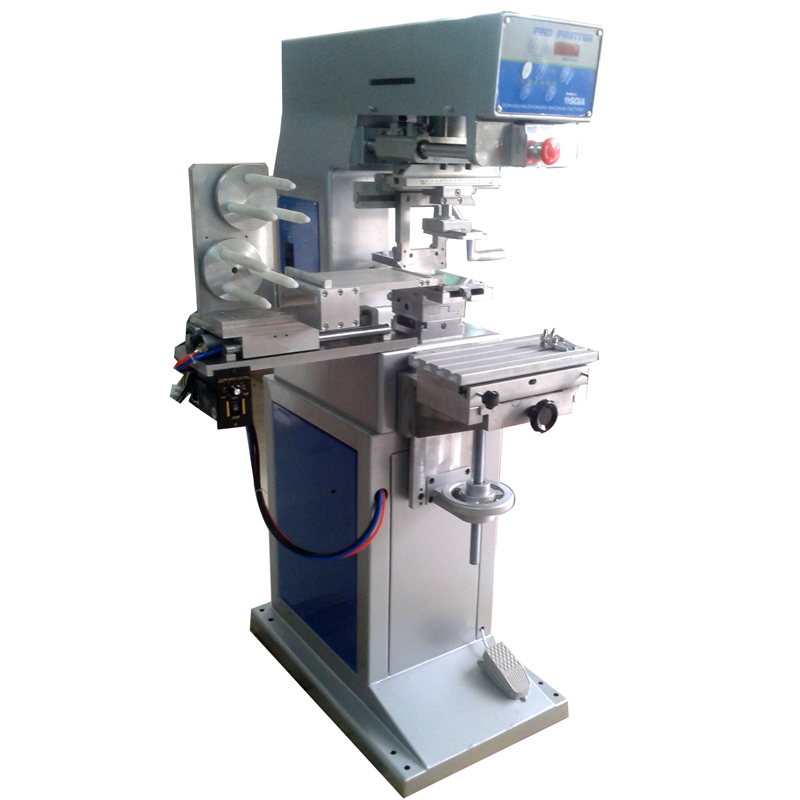

Machine performance:
1. This machine uses a single-chip microcomputer to compile the action program with a touch panel; the control panel is clear and easy to operate.
2. Four-digit counter, count the printing quantity; clearly display the current output.
3. Double-column lifting structure, stable and high precision.
4. Automatic cleaning of plastic head device, simple and convenient.
5. The squeegee constant pressure device ensures stable pressure during printing.
6. Fine adjustment of the rotation angle of the worktable front and back, left and right.
7. Aspirating stainless steel countertop, adsorbing various thin film products.
8. Taiwan CEC hydraulic buffers are equipped up, down, left and right to effectively eliminate printing vibration.
9. The whole machine runs fast, stable and low noise.
10. Action mode selection: automatic|semi-automatic|manual.
Machine parameters:
Cylinder up and down stroke: 80mm
Cylinder front and rear stroke: 160mm
Steel plate size: 150x75, 100, 150, 200, 250, 300mm
Workbench size: 115×280mm
Maximum printing height: 160mm
Maximum printing diameter: Φ140mm
Printing speed: 1500pcs/hr
Power: 110/220v 60/50Hz 50w
Dimensions: 750x650x1500mm
Weight: 165Kg
